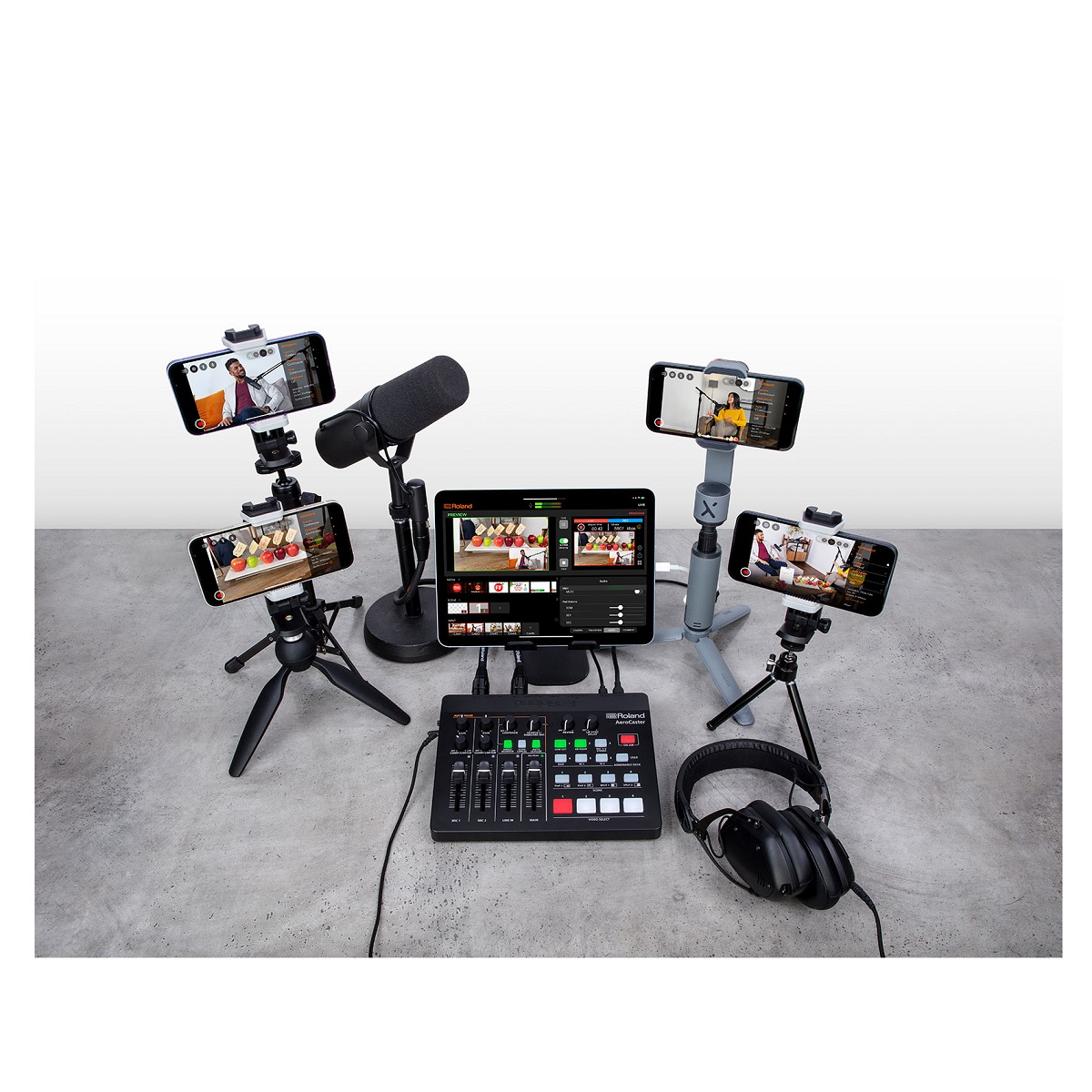

| AEROCASTER VRC-01 | |
| Connectors | MIC 1, 2 jacks: Combo type (XLR, 1/4-inch TRS phone), balanced, phantom power (DC 48 V, 4 mA Max) |
| LINE IN jack: Stereo miniature type |
| MONITOR OUT jack: RCA phono type |
| PHONES/HEADSET jack: Stereo miniature type (Stereo, CTIA-type) |
| DC IN 5V port: USB Type-C (R) |
| DEVICE port: USB Type-C (R) |
| Controller | MIC 1 LEVEL fader |
| MIC 2 LEVEL fader |
| LINE IN LEVEL fader |
| MAIN LEVEL fader |
| MIC 1 COMP/LIMITER knob |
| MIC 2 COMP/LIMITER knob |
| MIC 1 GAIN knob |
| MIC 2 GAIN knob |
| LOOP BACK knob |
| HEADSET/ONBOARD MIC knob |
| REVERB knob |
| LIP SYNC DELAY knob |
| PHONES/HEADSET knob |
| MIC 1 +48V switch |
| MIC 2 +48V switch |
| Indicator | POWER |
| DEVICE |
| SIG/PEAK |
| Nominal Input Level | MIC 1, 2 jacks: -60 to +4 dBu (Maximum input level: +24 dBu) |
| LINE IN jacks: -10 dBu (Maximum input level: +10 dBu) |
| Input Impedance | MIC IN 1, 2 jacks: 10 k ohms (ANALOG GAIN < 24 dBu), 5 k ohms (ANALOG GAIN < 24 dBu) |
| LINE IN jacks: 15 k ohms |
| Nominal Output Level | MONITOR OUT jacks: -10 dBu (Maximum output level: +10 dBu) |
| PHONES/HEADSET jack: 15 mW + 15 mW (32 ohms load) |
| Output Impedance | MONITOR OUT jacks: 1 k ohms |
| Audio Effects | Delay, Reverb, HPF, Noise Gate, De-Esser, Compressor, Limiter |
| Power Supply | USB AC adaptor (commercially available) |
| * Recommended to use an USB AC adaptor that can supply 5V, 1.0 A or more. |
| USB Bus power |
| Current Draw | 700 mA (AC adaptor) |
| 500 mA (USB bus power) |
| Operation Temperature | +0 to +40 degrees Celsius |
| +32 to +104 degrees Fahrenheit |
| Dimensions | 220(W) x 166(D) x 60(H) mm |
| 8-11/16(W) x 6-9/16(D) x 2-3/8(H) inches |
| Weight (without cables) | 600 g |
| 1 lb 6 oz |
| Accessories | Leaflet "Read Me First" |
| USB Type-C to Lightning cable |
| USB Type-C to USB Type-A cable |
| * 0 dBu = 0.775 Vrms |
| AEROCASTER LIVE | |
| Video Input | Satellite camera |
| Browser source |
| Built-in camera (iPad). |
| * 5 inputs in total |
| * Satellite cameras can be used with AeroCaster Camera or Web browser. |
| * Need to install the “AeroCaster Camera” App on your iPhone and Android Phone. |
| * “Browser source” use PC or mobile devices (iOS, Android OS) via Google Chrome web browser. |
| * Codec:H.264 Bitrate:Up to 20Mbps |
| Video Processing | RGB 4:4:4, 8-bit |
| 1080/60p |
| * Depends on iPad internal processing |
| * Video input will be converted automatically. |
| Input Formats | Up to 1080/30p |
| * Automatically adjusts resolution and frame rate according to network bandwidth. |
| Output Formats | Up to 1080/60p |
| * Reccommend Apple USB-C Digital AV Multiport Adapter or Apple Lightning-Digital AV Adapter. |
| Still image and video and audio playback | Up to 100. |
| * Use still images and videos saved in the iPad. |
| * File format conforms to iOS Photo Library. |
| * PNG alpha channel supported. |
| * Support mp4(aac), m4a(aac), mp3, wav as audio source. |
| Scene | Up to 30. |
| * Text, Media (Overlay), PinP, SPLIT, QUAD are either can be registered. |
| Video Effects | Transition: CUT, MIX (DISSOLVE), WIPE |
| DSK (overlay): Text, Media |
| Composition: PinP, KEY (Luminance Key, Chroma Key), Simple telop function |
| * PNG alpha channel composition supported |
| Audio Processing | Sampling Rate: 24 bits, 48 kHz |
| Streaming Platform | YouTube Live |
| Facebook Live |
| Twitch |
| * Custom RTMP supported |
| Recording | Format : MP4 (H.264/AAC) |
| Bitrate : 1Mbps〜10Mbps |
| Other Functions | (Zoom, Exposure, White Balance, Focus, LED Light, Stabilization) |
| * Depends on smart phone or tablet |
